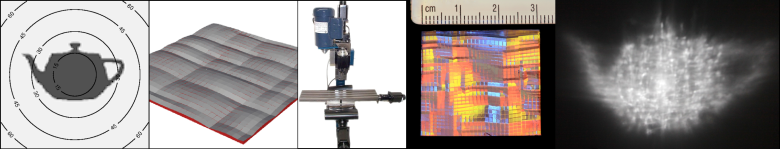

We propose a system for manufacturing physical surfaces that, in aggregate, exhibit a desired surface appearance. Our system begins with a user specification of a BRDF, or simply a highlight shape, and infers the required distribution of surface slopes. We sample this distribution, optimize for a maximally-continuous and valley-minimizing height field, and finally mill the surface using a computer-controlled machine tool. We demonstrate a variety of surfaces, ranging from reproductions of measured BRDFs to materials with unconventional high lights.

Abstract

We present a novel image-based method for separating diffuse and specular reflections of real objects under distant environmental illumination. By illuminating a scene with only four high frequency illumination patterns, the specular and diffuse reflections can be separated by computing the maximum and minimum observed pixel values. Furthermore, we show that our method can be extended to separate the diffuse and specular component under image-based environmental illumination. Applications range from image-based modeling of reflectance properties to improved normal and geometry acquisition.

Downloads

SIGGRAPH 2009 Paper
SIGGRAPH2009_FMC-highres.pdf, (10.4MB)
SIGGRAPH2009_FMC-lowres.pdf, (421KB)

Related Projects

Surface Reflectomy
Linear Light Source Reflectometry, SIGGRAPH 2003 Conference Proceedings
High-resolution Face Scanning, Eurographics Symposium on Rendering 2007
Practical Modeling and Acquisition of Layered Facial Reflectance, ACM SIGGRAPH Asia 2008
Estimating Specular Roughtness and Anisotropy from Second Order Spherical Gradient Illumination, Eurographics Symposium on Rendering 2009
